Programmable Distributorless Ignition System for VW Aircooled
Programmable Distributorless Electronic Ignition Kit including Trigger Mounting Kit for VW Aircooled Engines
Upgrade to Precision, High-Energy and Tunable Crank-Fired Ignition!
Get rid of your distributor and all of its problems...
* No more points, rotor cap or rotor
* No more VW 009 lag in power
* Stop misfiring and back firing problems
* No more hard cranking
* Program for economy and power
Kit Includes:
- Megajolt/E Programmable Ignition Control
- Programing Software, Detailed Instructions and Sample Advance Curve Map for VW Aircooled engines
- 36-1 tooth universal crank trigger kit.
- Requires no machining, completely bolt-on kit.
- Crank VR Sensor included.
- Will work with sand seal and screw type hub pulleys.
- Trigger wheel is cad plated for rust resistance.
- VR Sensor mount is made from 356-T6 alloy for superior strength.
- Distributor delete plug requires no clamp, using internal expansion for clamping. This allows for a clean appearing installation. (Choose Black, Blue or Red)
Major Features:
- 3D ignition mapping: 10x10 ignition advance grid with full linear interpolation smoothing between cells
- Dual, on-the-fly switchable ignition configuration
- Analog auxiliary input to further adjust ignition advance
- Four user-defined output switches, which trigger on RPM, Load or Auxiliary input, plus shift light output
- Modern, easy to use, and customizable Windows-based Configuration/Tuning software Screenshots
- 1000's of satisfied users worldwide
** Note: Kit does not include coil pack, edis module, TPS/Vacuum P/U or wiring.
Options:

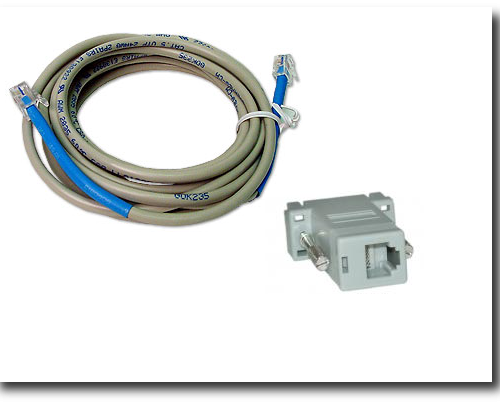

Megajolt Serial Tuning Cable
RJ11 DB9 serial tuning cable for Megajolt Lite Jr. V4
Includes a 2.5 cable + DB9 serial adapter. A convenient alternative to making your own cable.

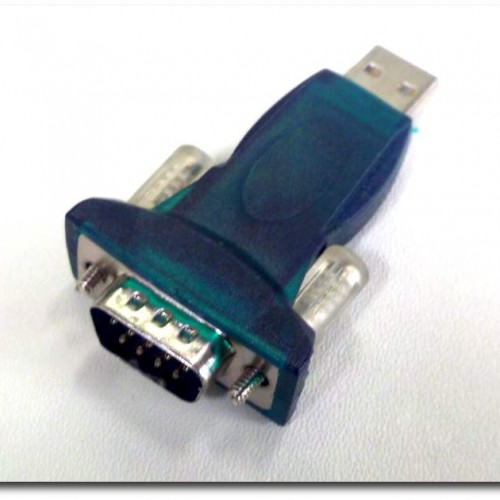

Compact USB - Serial Adapter
A low cost, compact USB-Serial adapter tested to work with the Megajolt Ignition Controllers. Plugs right into the USB connection of your laptop, instantly and neatly adding a serial port to your computer.
Tested in our Lab on as many computers as we could put our hands on, across Microsoft Windows XP, Vista and Windows 7!
Includes short USB extension cable and drivers.
